Securistyle
12" Side Hung UPVC Window Hinges, Slimline Defender
- SKU:
- WHIN-SH-SLIM-12in (HIN82512) (5055621405944)
- UPC:
- 5055621405944
- MPN:
- WHIN-SH-SLIM-12in
- Condition:
- New
- Availability:
- In Stock
- Weight:
- 440.00 Grams
Description
Click for our Hinge Measuring Guide to help you choose the correct type and size of window hinge.
** All of our window hinges are sold in PAIRS **

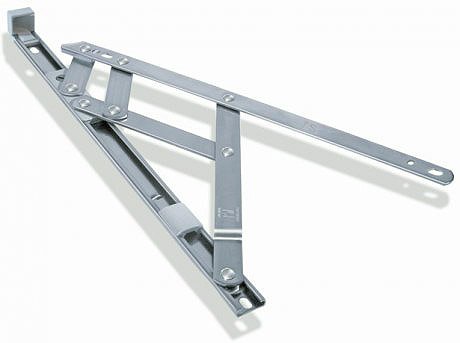

12" Slimline Defender Side hung friction hinges for UPVC double glazing windows from Securistyle.
These are slimmer in width than the standard window hinge at 15mm ( a standard window hinge is 18mm)
- Although these are classed as a 12" window hinges the metric length is 310mm
- Stack height is 13mm - if you require 17mm stack height then we have easy-fit hinge packers available.
- Width is 15mm
- Supplied as a handed pair.
- Also available in 16"
Not sure which products to order?
Call the Handles and Hinges team on 01204 652211
Information from the manufacturer
- Extended enclosed end cap to enhance weather sealing
- Asymmetric location system for reliable weather sealing to BS 6375-1
- Handed ‘profiled’ vent arm further enhancing weather seal
- Patented lipped slider for enhanced smooth operation
- Easy friction adjustment without metal to metal contact
- Long and reliable working life tested to 30,000 cycles
- Unique patented, robust cam friction device eliminates any risk of friction screw misuse
- Available in 8” to 24” top hung and 12" and 16” side hung
- Defender Slimline ; engineered for narrow hardware channels
Window Hinge Measuring Guide
Step 1. Check the hanging of your window.
- If the handle is on the SIDE of the window, you need SIDE Hung Window hinges.
- If the handle is at the BOTTOM of the the window you need TOP HUNG hinges.
TOP HUNG
SIDE HUNG
Step 2. Measure the length of the hinge.(A)
- The length is the track part that you can see when you open your window. Your old hinge may be a 10" but if you can fit a larger hinge in then do that. The few pennies extra will pay you back in extra years of service due to better weight distribution.
Step 3. Measure the width of the hinge. (B)
- Measure the width of the track that you have just measured, this could be either 15mm or 18mm.The most common one is the 18mm and is fitted on 90% of windows.
Step 4. Measure the stack height.
- This is not the easiest bit the do, the stack height is the actual thickness of the hinge. This can be difficult without taking the hinge off. Don't worry, THERE IS A WORKAROUND. We advise buying a pack of Hinge packers for a few pound that will enable all of our hinges to fit on your window regardless of the stack height. This will make you job infinitely easier and you will only have to remove the window opener once.
There are 2 different stack heights, 13mm and 17mm. The packers we sell clip on nice and snug to make the 13mm hinges up to 17mm with a simple clip on action.
F.A.Q
Frequently Asked Questions
Yes. All our window hinges come in pairs.
We can't promise that however if you have a upvc frame then its easy to put new screw holes in using self-tapping screws. Click here for screws
This is the thickness of the hinge when all the parts are closed or stacked on top of each other. Our hinges are all 13mm stack but if you need 17mm stack then our hinge packers will do the job for you.
4 Reviews
-
Hinges
Polite and prompt service. Fitted and working. Would highly recommend.
-
Work well
Work well as designed. The end of the base is thicker than my original hinges so the screw holes are not aligned and need new wholes in the frame and sash.
-
Excellent Service
I need new window hinges, Handles and Hinges Double Glazing Spares had them in stock, in my hands 36 hours later, perfect.
-
12" side hung upvc window hinge Slimline Defender
Solid looking, strong, easy to fit direct replacement for existing hinges. Holes not in exactly the same place as previous hinge so had to use self tapping screws into new place in upvc frame
