Cotswold
12" Top Hung UPVC Window Hinges
- SKU:
- WHIN-TH-COTS-12in (HIN06112) (5055621405777)
- UPC:
- 5055621405777
- MPN:
- WHIN-TH-COTS-12in
- Condition:
- New
- Availability:
- In Stock
- Weight:
- 440.00 Grams
Description
Click for our Hinge Measuring Guide to help you choose the correct type and size of window hinge.
** All of our window hinges are sold in PAIRS **

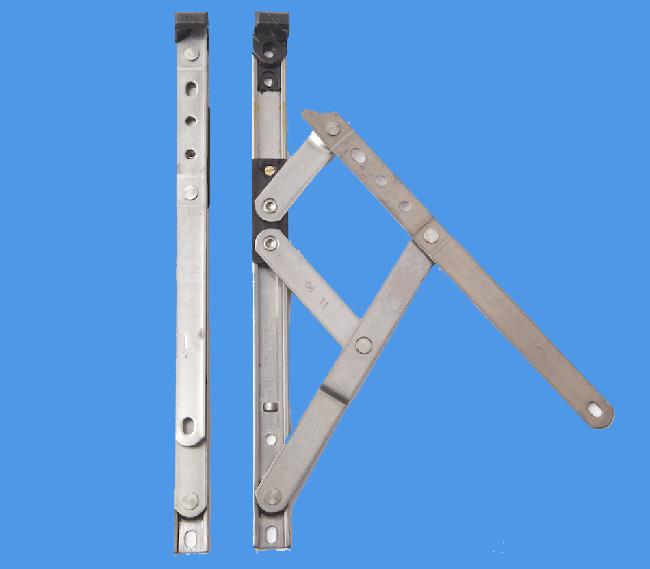

Top hung friction hinges for upvc double glazing windows.
- Although these are classed as a 12" window hinges the metric length is 311mm
- Stack height is 13mm - if you require 17mm stack height then we have easy-fit hinge packers available.
- Width is 18mm
- All our window hinges are supplied as a handed pair.
- Also available in 8", 10, 16", 20" and 24"
These particular Cotswold hinges can be used as side hung or top hung hinges.
If you can't see the part you need for your double glazing windows
call us on 01204 652211 for free advice
Information from the manufacturer
Conforming to all current British Building Standards and FENSA requirements.
Manufactured in the United Kingdom using Ferretic stainless steel.
Austenetic version for coastal areas available by special order.
The stays have been proven to a lifetime 30,000 cycle guarantee.
Conforms to the requirements of BS6375 Part 2 1987.
Made by Cotswold Architectural Products
**Work in the trade?
Get through loads of hinges?
Buy these hinges in BULK and save £££s**
F.A.Q
Frequently Asked Questions
Yes. All our window hinges come in pairs.
We can't promise that however if you have a upvc frame then its easy to put new screw holes in using self-tapping screws. Click here for screws
This is the thickness of the hinge when all the parts are closed or stacked on top of each other. Our hinges are all 13mm stack but if you need 17mm stack then our hinge packers will do the job for you.
Additional Information
Window Hinge Measurement Video: |
|
Size: |
12 Inch |
Style: |
Top Hung |
Style: |
Standard |
Trackwidth: |
18mm |
