Cotswold
16" Top Hung UPVC Window Hinges
- SKU:
- WHIN-TH-COTS-16in (HIN06116) (5055621405784)
- UPC:
- 5055621405784
- MPN:
- WHIN-TH-COTS-16in
- Condition:
- New
- Availability:
- In Stock
- Weight:
- 579.00 Grams
Description
Click for our Hinge Measuring Guide to help you choose the correct type and size of window hinge.
** All of our window hinges are sold in PAIRS **

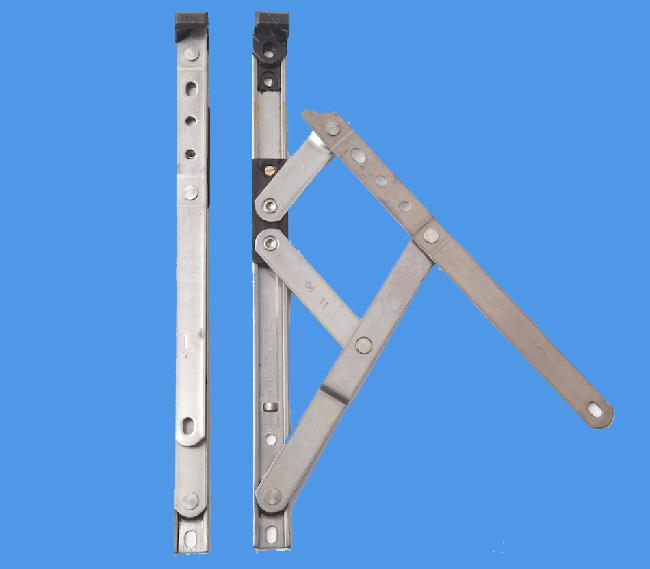

16" Top hung friction hinges for upvc double glazing windows by Cotswold.
- Although these are classed as a 16" window hinges the metric length is 406mm
- Stack height is 13mm - if you require 17mm stack height then we have easy-fit hinge packers available.
- Width is 18mm
- All our window hinges are supplied as a handed pair.
- Also available in 8", 10, 12", 20" and 24"
- Manufactured by Cotswold
These particular Cotswold hinges can be used as side hung or top hung hinges.
Not sure how to measure your window hinges?
Call us on 01204 652211 for free advice
Information from the manufacturer
Conforming to all current British Building Standards and FENSA requirements.
Manufactured in the United Kingdom using Ferretic stainless steel.
Austenetic version for coastal areas available by special order.
The stays have been proven to a lifetime 30,000 cycle guarantee.
Conforms to the requirements of BS6375 Part 2 1987.
Made by Cotswold Architectural Products
**Work in the trade?
Get through loads of hinges?
Buy these hinges in BULK and save £££s**
Window Hinge Measuring Guide
Step 1. Check the hanging of your window.
- If the handle is on the SIDE of the window, you need SIDE Hung Window hinges.
- If the handle is at the BOTTOM of the the window you need TOP HUNG hinges.
TOP HUNG
SIDE HUNG
Step 2. Measure the length of the hinge.(A)
- The length is the track part that you can see when you open your window. Your old hinge may be a 10" but if you can fit a larger hinge in then do that. The few pennies extra will pay you back in extra years of service due to better weight distribution.
Step 3. Measure the width of the hinge. (B)
- Measure the width of the track that you have just measured, this could be either 15mm or 18mm.The most common one is the 18mm and is fitted on 90% of windows.
Step 4. Measure the stack height.
- This is not the easiest bit the do, the stack height is the actual thickness of the hinge. This can be difficult without taking the hinge off. Don't worry, THERE IS A WORKAROUND. We advise buying a pack of Hinge packers for a few pound that will enable all of our hinges to fit on your window regardless of the stack height. This will make you job infinitely easier and you will only have to remove the window opener once.
There are 2 different stack heights, 13mm and 17mm. The packers we sell clip on nice and snug to make the 13mm hinges up to 17mm with a simple clip on action.
F.A.Q
Frequently Asked Questions
Yes. All our window hinges come in pairs.
We can't promise that however if you have a upvc frame then its easy to put new screw holes in using self-tapping screws. Click here for screws
This is the thickness of the hinge when all the parts are closed or stacked on top of each other. Our hinges are all 13mm stack but if you need 17mm stack then our hinge packers will do the job for you.
Additional Information
Window Hinge Measurement Video: |
|
Size: |
16 Inch |
Style: |
Top Hung |
Style: |
Standard |
Trackwidth: |
18mm |
4 Reviews
-
Replacement hinges
I was a little wary about replacing these hinges myself but the size guide and videos made the job a pleasure.
-
WINDOW HINGES
reliable service good products. This is the second time i have used this company.
-
16" top hung window hnge
excellant service and helpful information on their site. my windows are over 20 years old and I thought I would have to replace them, saved me a fortune
-
First class
A first class service for a first class product. Website very clear and concise. As a diy job, maybe it would be helpful on your website to point out to a mere layman that the "L" and "R" on window hinges is with the window being viewed from the outside of the property. I would definitely use your company again.
