Era, Saracen, Surelock Replacement Gearbox with Hookbolt

(8 reviews) Write a Review
SKU:
DL-GBX-ERA-Hookbolt (ERAHOOKCASE35) (5055621404060)
UPC:
5055621404060
MPN:
GBX3
Condition:
New
Availability:
In Stock
Weight:
580.00 Grams
  • Era, Saracen, Surelock Replacement Gearbox with Hookbolt
  • Era, Saracen, Surelock Replacement Gearbox with Hookbolt
  • Era, Saracen, Surelock Replacement Gearbox with Hookbolt
  • Era, Saracen, Surelock Replacement Gearbox with Hookbolt
£32.30 Inc. VAT
£26.92 Ex. VAT

Description

This multipoint gear box has been used on numerous door locking systems over many years and can be found on some of the major brand doors like B & Q etc.

The gearbox has a hookboltand a latch and the backset is 35mm.  The same gearbox can be used on the Saracen, Laird and Surelock systems.

The latch is easily turned around to suit both left or right handed doors using a pozi drive screw driver.



A free starbit is included to help the job along.

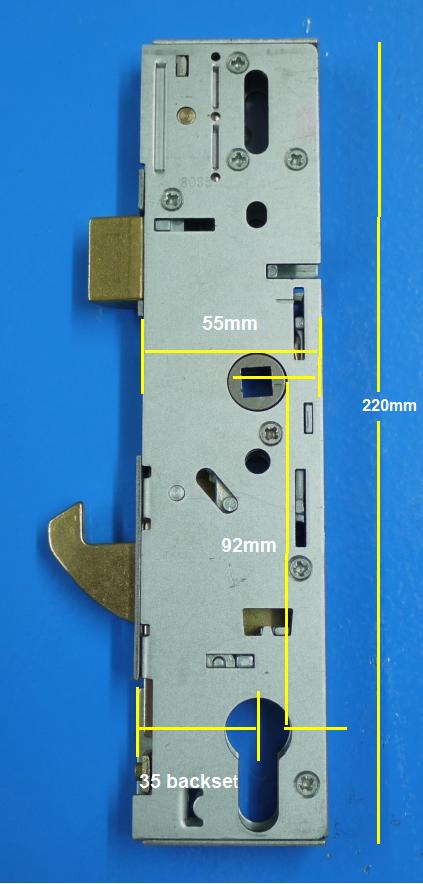

Measuring Guide



Simple steps to help you choose the right size backset for your Gearbox












The Backset size is A in the diagram

Measure from the the front of the main faceplate (A in the diagram) to the middle of the spindle hole. This measurement is taken when the gearbox is attached to the main front face plate.

Measurement B is the PZ Centre.









360 Degree View

View AllClose

F.A.Q

Frequently Asked Questions

You need to measure the pz (shown as “A” on our guide) and the backset (shown as “B” on our guide).
Click here to go to the guide.

This depends on your existing gearbox and whether an alternative is available and we always have to match up with the existing “holes” in your door. Call us on 01204 652211 and we can help you with this.

The most common bit used to remove a gear box is a torx t20 although in some instances a square drive can be used which can normally found in most drill bit sets.

A Dual spindle has 2 spindles at different heights. This means that the levers / moving parts of the door handle will be at different levels on the inside and outside. A Split spindle is made of 2 parts that meet inside the gearbox. The levers / moving parts of the door handle will be at the same level. A Single spindle is one long part which goes right through the door. The levers / moving parts of the door handle will be at the same level. To distinguish between a split and single spindle you will need to remove them from the door and look.

No, as you do not necessarily need to change the barrel when changing the gearbox so the gearbox is sold on its own own. If you need a new cylinder, please click here.

We try to put these guides on each gearbox page. If its not there please call us on 01204 652211 and we’ll find the instructions for you.

Unfortunately not all gearboxes can be purchased separately. Contact us if you can’t see your gearbox on our website and we can tell you if its available or not.

View AllClose

Additional Information

Backset:
Backset 35mm
Backset:
Backset 45mm
Spindle:
Split
Manufacturer:
Era
Manufacturer:
Homesafe
Manufacturer:
Sapa
Manufacturer:
Saracen
Manufacturer:
Laird
Handle to Cylinder Size:
92mm
Locking Points:
1 Hookbolt, 1 Latch
Shipping:
Delivered for just £3.18
Style:
Split Spindle
View AllClose
