GU Multipoint OLD Style, 2 Rollers with Attachments for Shootbolts, Lift Lever (L/L)

This OLD style GU multipoint is a one piece locking mechanism conisting of a latch, deadbolt, two rollers and is also supplied with attachments for shootbolts.

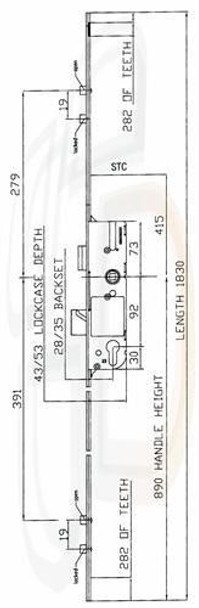

Size:

• Backset: 28mm or 35mm
• Distance between rollers: 689mm
• Distance between latch and deadbolt: 62mm
• Case height:  207mm

Operation:

• Lift lever

Notes:

• GU locks are now manufactured with a new style centre case
• The main difference between old and new style is the distance between the latch and the deadbolt, this will sometimes cause problems with strike plates
• The other major difference in the height of the lockcase, although this shouldn't cause any real problems when retro fitting
• Old style cases may have crank ed faceplates

Latch Reversal:

• Push flat bladed screwdriver into small rectangular slot above spindle and pull latch out at same time
