Harbour Butt Hinge for UPVC Doors - Bulk Buy

Adjustable double glazing butt hinge from Fab and Fix

• Hinge length 103mm
• Hinge width 15mm
• Fitted with security grub screw to prevent removal of pin
• Available to suit profiles with bevel angles of  0°(flat) and 15° (angled) - see diagram below

• Colours available - white available immediately
• Also available in Hardex Gold, Hardex Chrome or Hardex Satin by special order.

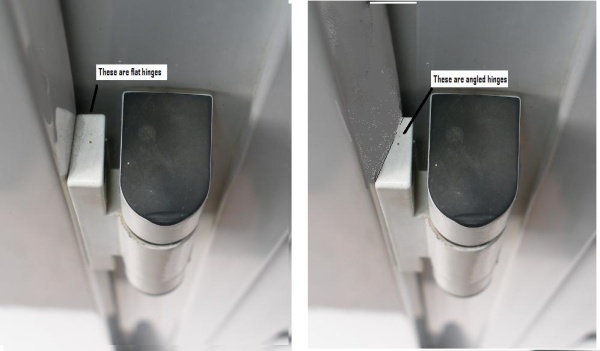

                     FLAT                                                     ANGLED

Information from the manufacturer

Low profile, captured design specifically for PVC-U doors
- Dedicated performance, unobtrusive appearance

Integral fixing lugs and 7 screw fixing positions
- Optimal stability and strength

Security anti-lift pin
- Prevents intruder from removing the pin and lifting out the door

Available in 2 different chamfers (0 and 5 degrees)
- Works with square and chamfered profiles

Colour coordinated cover caps
- Perfectly matching components, even down to the smallest details

2D adjustable with allen keys
- Allows for final tweaking and alignment

20kg sash weight load per hinge
- 3 hinges will support a 60kg door

Technical Specification

Designed for PVC-U-U doors

All finishes salt spray tested to 480 hours (BS EN 1670: Class 5)

Tested to 200,000 cycles

Tested with 3 hinges up to 60kg sash weight

Horizontal adjustment (toe and heel) of +/- 2mm
