Mila
Mila Tongue Window Lock
- SKU:
- WL-ESP-MILA-GR-TON
- UPC:
- 5055621400680
- MPN:
- WL-ESP-MILA-GR-TON
- Condition:
- New
- Availability:
- In Stock
- Weight:
- 351.00 Grams
Description
Mila Tongue espag Window locking mechanism.
This lock has been discontinued by the original manufacturer. The one offered on this page is an exact copy and will swap straight over with minimal fuss.
These window locks usually have a GR number printed on them face. The GR number corresponds with the size of the rod.
Not sure how to measure you window Mechanism- Click Here
The sizes are as follows:
- GR36 Tongue espag window lock - 360mm long
- GR60 Tongue espag window lock - 550mm long
- GR80 Tongue espag window lock - 750mm long
- GR100 Tongue espag window lock - 950mm long
- GR120 Tongue espag window lock - 1150mm long
- GR140 Tongue espag window lock - 1350mm long
Information from the manufacturer.
Tongue espagnolette designed for use on top and bottom hung fully reversible double glazed windows.
- Available in 19mm and 22mm back set
- Equipped with Fully retracting strong tongues
- Tongue projects 17mm
- Fits into any standard eurogroove
- Faceplate, drive rod and tongues in steel, Yellow brichromate finish
- Zinc Diecast lockcase
Espag Lock Backset Measuring Guide
SIMPLE STEPS TO HELP YOU CHOOSE THE CORRECT FOR YOUR WINDOW LOCK

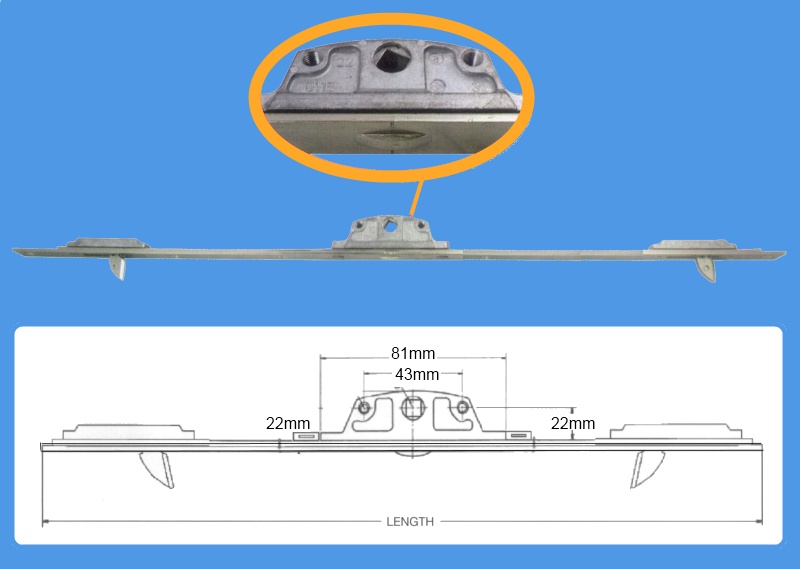

To Measure the backset on your window lock you need to measure from the middle of the spindle hole to the front of the face plate. Take a look at the picture below and the red arrows show you where to measure.
The holes that the Bolts go through are a set distance and are the same on ALL window locks (43mm).
<
11 Reviews
-
Mila Tongue Window Lock
I have already replaced it in 3 windows and it works. The arrangement of the holes is slightly different than the original one, but it is not a problem.
-
Locking mechanism
Hi i couldn't find the product anywhere else so it's a 5 star review.
-
Mila tongue window lock
Very good replacement
-
Great replacement
Very pleased as old lock is obsolete and quick delivery
-
Excellent
Great service thanks Rebecca
-
Replacement lock
Great replacement for old window lock mechanism.
-
Espag window bolt
Perfect replacement for window repair. Had to drill new holes for screws as they did not line up and move keeper but no problem. Works perfectly. If ordering online be careful of delivery charge. There is only one price which is courier delivery. In my case delivery was more than price of items. However, my email pointing this out was picked up immediately and method changed to parcel post before being despatched. Items arrived within 2 days in Scottish Highland region. Customer service excellent, thank you Jackie.
-
Service & Product very good
Service & Product very good
-
Excellent product, excellent fast service, very reasonable price, no hassle what so ever, would recommend them and there products to anyone
Everything was excellent
